Home > Products > Australian Standard Fire Hose Reel

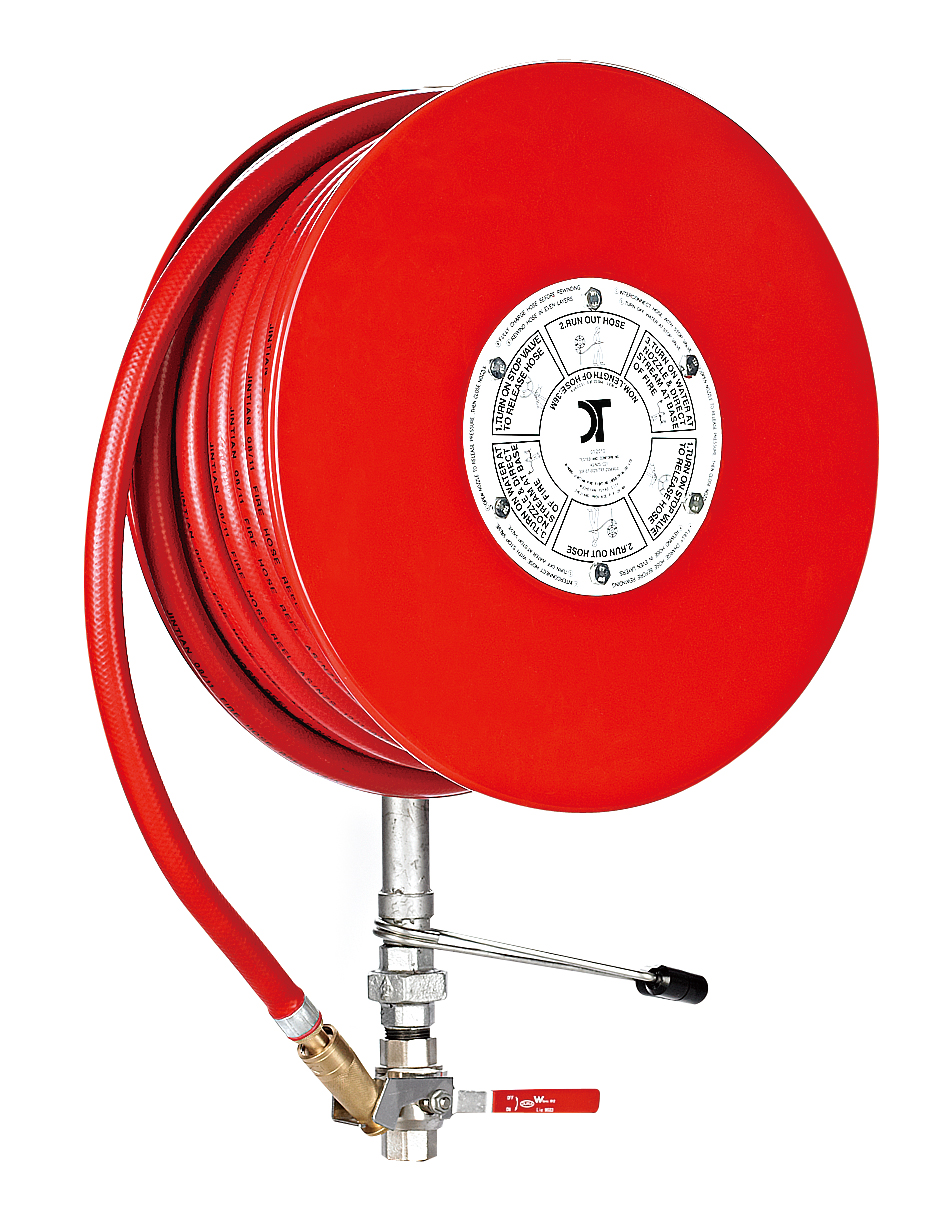

Australian Standard Fire Hose Reel

Product Name

Fire Hose Reel With Swivel Arm

Product Code:

SS03-100-008

Size:

19mm*36M

H(mm):

530

W(mm):

280

D(mm):

480

Inlet:

1''BSP

Outlet:

Spray



Details

Specification:


1. Standard Mark certificate to AS1221   Australian standard

2. Licence number SMKH21422

3. Side plates 1mm colld rolled steel or stainless steel

4. RAL3000 polyester epoxy powder coating

5. 1 manual stop valve with connection fitting

6. Inlet pipe galvanized steel or stainless steel

7. Unwind test through hose guide force ≤ 100N

8. Red or black fire hose to AS1180

9. Three operating sequence nozzle can choose

10. Max working pressure 15 bar, test pressure 17 bar

Fire Hose Reels provide a reasonably accessible and controlled supply of water to combat a potential Class A fire risk.

Various types of Fire Hose Reels are available to meet specific needs.

With a standard fully extended length of 36 metres, Fire Hoses are designed to deliver a minimum of 0.33 litres of water per second.

A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire.

The Fire Hose Reel features:

A unique ball valve shut off device, ensuring the maximum flow of water is available to the hose with one movement of a lever

A solid brass hose nozzle

Quick and easy installation using our simple wall mounting bracket.


Product Name

Size

H(mm)

W(mm)

D(mm)

Inlet

Outlet

Fire Hose Reel

with Swivel Arm

19mm*36M

530

280

480

1''BSP

Spray/Jet/Off

19mm*36M

530

280

480

1''BSP

Jet/Off

19mm*36M

530

280

480

1''BSP

Off/Jet

25mm*36M

580

310

550

1''BSP

Spray/Jet/Off
