Home > Products > CO2 Alum.Alloy Steel Extinguishers(SS01-105-310)

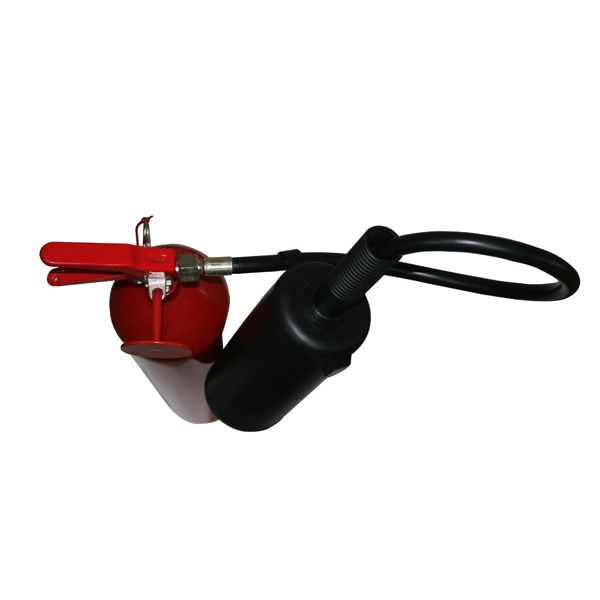

CO2 Alum.Alloy Steel Extinguishers(SS01-105-310)

Out-diameter(mm): Φ159

Cylinder high(mm): 580

Cylinder weight(kg): 6.7

Extinguisher weight(kg): 13

Volume(L): 7.5

Filling Weight(kg): 5kg CO2

Temperature range(℃): 20℃~+60

Max working pressure(bar): 174

Test pressure(bar): 250

Material: A6061

Min wall-thickness(mm):7.38

Fire class: 89B

Bottom of cylinder: concave

Details

CO2 Alum. Alloy Steel Extinguishers are normally used for Fire Classes B and Fire Classes E.

The range of our CO2 Alum. Alloy Steel Extinguishers are from filling 1kg CO2 to 6kg CO2.

The related volume is from 1.5L to 9L with filling rate 0.667.

The cylinder material is AA6061.

The cylinder body is lighter than Alloy Steel cylinder.

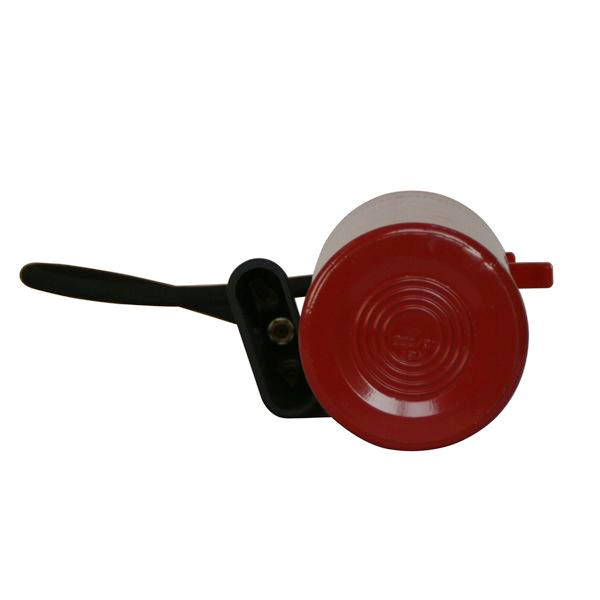

The cylinder bottom is concave.

The cylinder and valve have obtained CE certificate.

Cylinder surface is with good polyester painting RAL3000.

Engineers from the German TUV company Shanghai branch monitor the production procedures of

the CO2 CE Certified Alum. Alloy steel cylinders.

We assure the safety of users with excellent quality products.

We could provide OEM service to meet customer’s special requirements.
